Current Location: Home > Products> Tripod Barrier Turnstile JDGD-16
Tripod Barrier Turnstile JDGD-16 Tripod Barrier Turnstile JDGD-16 Tripod Barrier Turnstile JDGD-16

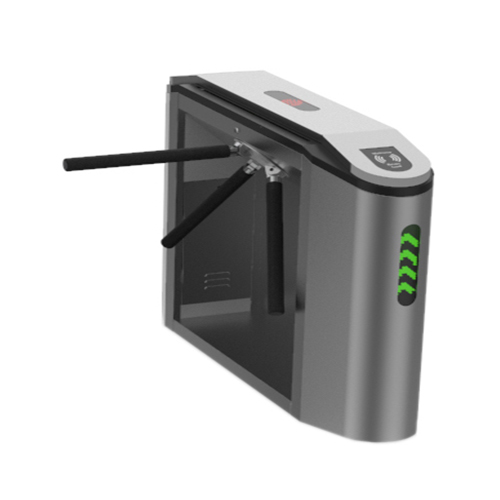

Product Name:Tripod Barrier Turnstile JDGD-16

  • Product Details:

    Tripod barrier turnstile JDGD-16 is a robust, efficient, and reliable security solution for restricting unauthorized access to secured areas. The cabinet is made of high-quality brushed or polished stainless steel which suits any interior. Its waterproof design enables it to be used for indoor and outdoor applications, and the distinctive drive system and mechanical structure ensure higher reliability, better performance, resistance to all environmental factors, and maintenance-free operation. In addition, the tripod turnstile barrier is also perfect for controlling crowds in airports, factories, and trade centers.

  • E-mail:

The tripod barrier turnstile is robust and long-lasting for continuous use


Tripod Barrier Turnstile Features

1. Whisper quiet, low-noise operation
2. Easy to install and maintain
3. Bi-directional operation
4. Easy installation of access control equipment
5. Compact design with smooth and silent operation
6. Fail-safe feature that allows the arm to drop down when the power supply is disrupted
7. Arm is always in the lock position, once receive signal it will unlock and lock back after one round of rotation or time out
8. The smooth operation designed for mas transit application
9. Visual LED indication strip at the front and back of the body makes it more dazzling and attractive
10. Mechanical drive unit allows the arm to be pushed through effortlessly

Tripod Barrier Turnstile Applications

Tourist attractions
Business buildings
Office block
Sports centers
Amusement parks

Tripod Barrier Turnstile Parameters

 Housing Material  #304 stainless sheet
 Dimension  1400 x 280 x 980mm
 Power Supply  AC110V~240V, 50/60hZ
 Channel Width  550mm
 Arm Turning Angle  120°
 Pass Speed  35 persons per minute
 Input signal optional  Dry contact signal or +12V level signal or DC12V pulse signal
 Rotating Direction  Bi-directional
 Communication interface  RS485
 Arm drop when power failure  Yes
 Open Time  0.2 second
 Life Cycle  5 million times
 Working Temperature  -30°C~+70°C
 Working Environments  Indoor, outdoor
 G.W  65 kgs
 Package  export standard carton

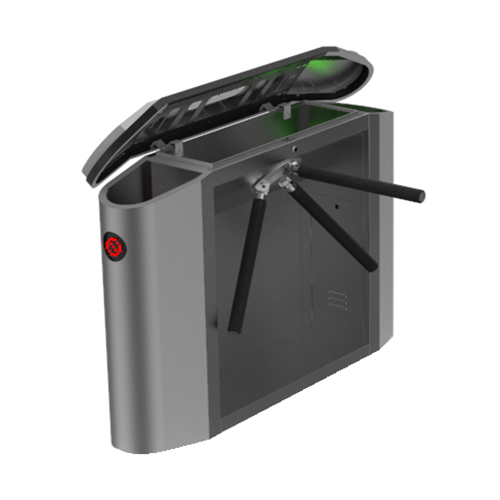

The Design

Tripod Barrier Turnstiled


The Dimensions

Tripod Barrier Turnstile Dimensions

The System Diagram

Tripod Barrier Turnstile System Diagram

Project Cases

The Applications of Tripod Barrier Turnstile

Please leave a message if you are interested in this model

  • *
  • *
  • *
