Current Location: Home > Products> Automatic Rising Arm Barrier JDDZ-8
Automatic Rising Arm Barrier JDDZ-8 Automatic Rising Arm Barrier JDDZ-8 Automatic Rising Arm Barrier JDDZ-8

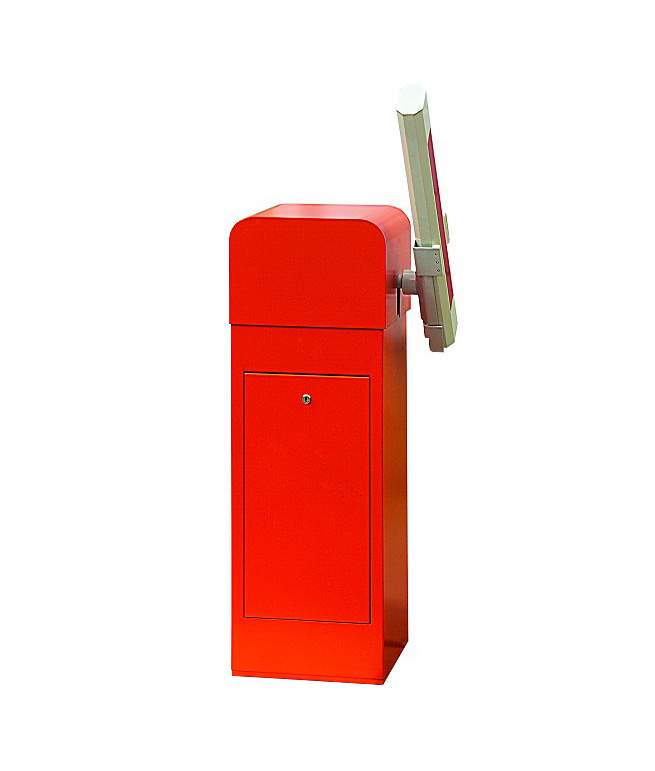

Product Name:Automatic Rising Arm Barrier JDDZ-8

  • Product Details:

    Automatic rising arm barrier JDDZ-8 is an efficient and reliable traffic control solution for the parking lot. Rapid opening times, simple handling, excellent dependability, and a long lifespan are all guaranteed by the use of a modern DC24V digital brushless motor and updated control technology. It is adaptable, combines different access control systems, and may be operated by remote control and push button in addition to being equipped with standard interfaces. Additionally, the compact housing’s UV-resistant and environmentally friendly powder coating finish exhibits remarkable corrosion resistance, dust resistance, rain resistance, and rust resistance.

  • E-mail:
                       Details

0.6 ~ 6 seconds adjustable digital automatic rising arm barrier is easy to use and maintain



Automatic Rising Arm Barrier Features

1. Programmable open & close gate arm speeds
2. Direct drive motor auto-reverses upon contacting an obstruction
3. Reliability for high usage
4. Accurate and safe system operation with encoder
5. Auto-close function upon departure of the vehicle
6. Auto-reverse feature in case an object has been hit
7. Quality product resistant to weather conditions
8. Low power consumption for economical operation
9. Easy to use and maintain
10. No corrosive housing made of powder-coated cold-roll sheet

Automatic Rising Arm Barrier Applications

Car parks
Company grounds
Residential building
Toll stations
Large business complexes
Airports

Parameters

 Power Supply  AC220V/ AC110V±10%, 50/60hZ
 Rated Power  140W
 Motor Type  DC 24V brushless digital motor
 Motor Speed  1500RPM
 Open Time & Boom Length  1.0~1.2 seconds  2.5-meter straight boom
 1.5~2.0 seconds  3.0-meter straight boom
 2.0~2.5 seconds  3.5-meter straight boom
 2.5~3.0 seconds  4.0-meter straight boom
 3.0~3.5 seconds  4.5-meter straight boom
 3.5~4.0 seconds  5.0-meter straight boom
 4.0~4.5 seconds  5.5-meter straight boom
 5.0~6.0 seconds  6.0-meter straight boom
 Noise  ≤60dB
 Error Action  ≤0.001%
 Interfaces  IR sensor, vehicle detector, RS485, open/ close/stop
 Output  Relay output, max AC240V, 5A bearable
 Life Cycle  ≥4.5 million times
 Work Temperature  -35℃~60℃, Relative humidity:≤90%, no condensation



The Design

Automatic Rising Arm Barrier

The Mechanism

Automatic Rising Arm Barrier Mechanism

The System Diagram

Automatic Rising Arm Barrier System Diagram

The Right & Left Type Definition

The Right & Left Type Definition of Automatic Rising Arm Barrier

Project Cases

The Applications of Automatic Rising Arm Barrier

Please leave a message if you are interested in this model


  • *
  • *
  • *
