Current Location: Home > Products> Speed Gate Optical Turnstile JDSG-9

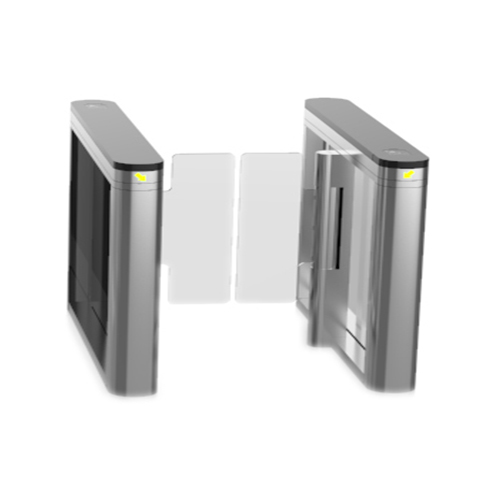

Speed Gate Optical Turnstile JDSG-9 Speed Gate Optical Turnstile JDSG-9 Speed Gate Optical Turnstile JDSG-9

Product Name:Speed Gate Optical Turnstile JDSG-9

  • Product Details:

    With a compact design and increased security, the speed gate optical turnstile JDSG-9 offers maximum flexibility in a small footprint. Such access control turnstile offers a visible visual deterrent against unauthorized entry, detects unwanted entry attempts, and set off alarms to notify the security staff. It comes with many pairs of optical sensors that guarantee the security of passage at high throughput. Its panels move rapidly and precisely, steadily and silently, with minimal power consumption and energy conservation thanks to the high-performance motor and precise positioning encoder. In addition, it is frequently utilized in hotels, airports, schools, factories, and other locations where perimeter control is required


  • E-mail:

Affordable speed gate optical turnstile uses a unique detection algorithm to prevent fraud and increase user safety


Speed Gate Optical Turnstile Features

1. Low power consumption
2. Green and Red Indicator Lights
3. Flexible lane configurations
4. Opposite direction fraud detection
5. Equipped with sensors that allow detecting tailgating
6. Unidirectional or bidirectional control of personnel access
7. Mechanical anti-clamping functions for protection
8. When power is off, the turnstile system will automatically disarm the gates.
9. Accurately detect the pedestrian’s passing position to achieve functions, such as anti-tailgating and anti-reverse passing.
10. Compatible with any type of access control system, integrate via dry contact signal

Speed Gate Optical Turnstile Applications

Wheelchair/disabled access
Commercial buildings
Government buildings
Retail stores


 Housing Material   #304 stainless sheet
 Dimension  1400 x 200 x 980mm
 Power Supply  AC110V~240V, 50/60hZ
 Channel Width  600~900mm
 Drive Motor   DC 24V brushess motor or servo motor
 Pass Speed  30 ~35 persons per minute
 Input Interface  Dry contact signal or +12V level signal or DC12V pulse signal
 Rotating Direction  Bi-directional
 Communication interface  RS485
 Gate opens when power failure  Yes
 Open Time  0.2 second
 Life Cycle  3 million times
 Working Temperature  -30°C~+70°C
  Working Environments  Indoor, outdoor (with shelter)


The Design

Speed Gate Optical Turnstile

The Dimensions

The Dimensions of Speed Gate Optical Turnstile

The System Diagram

The System Diagram of Speed Gate Optical Turnstile

Project Cases

Speed Gate Optical Turnstiles
