Current Location: Home > Products> High Speed Gate Turnstile JDSG-21

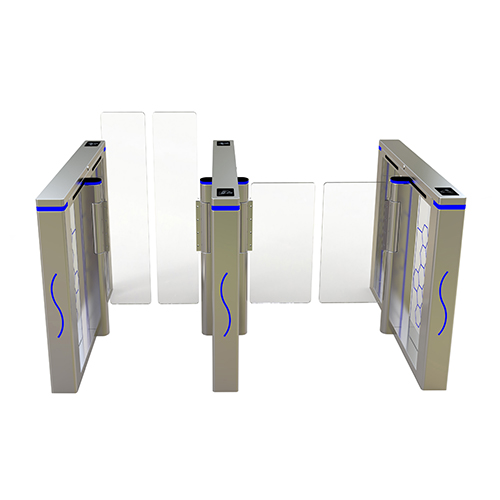

High Speed Gate Turnstile JDSG-21 High Speed Gate Turnstile JDSG-21 High Speed Gate Turnstile JDSG-21 High Speed Gate Turnstile JDSG-21

Product Name:High Speed Gate Turnstile JDSG-21

  • Product Details:

    High speed gate turnstile JDSG-21 is designed with a slim, mordern look and minimal footprint, operating In a fast, smooth and relible way with low power consumption and low noise, being an efficient crowd control solutions for narrow entry areas with high aesthetic and comfort requirements. Security speed gate turnstile JDSG-21 adopts unique variable speed transmission mechanism which can precisely control the movement position of speedlane turnstiles, ensuring the movement more accurate and stable. In addition, optical speed gate turnstile JDSG-21 provides single directional or bi-direction access and flexibly integate with various access control systems.


  • E-mail:

Stylish design high speed gate turnstile,  security speed gate turnstile, optical speed gate turnstile provides accurate tailgating detection

1.Intuitive approach detection
2. Slim tapered housing with ergonomic design and small footprint
3. Precision controlled tempered glass obstacles
4. In case of emergency the obstacles can be unlocked with a simple push to automatically open
5. Electro-mechanical locking to withstand forced entry attempts
6. Silent and smooth in operation
7. Stylish and flexible design able to virtually blend infinite aesthetics within architectural interior needs
8. Wider passages and higher obstacles
9. Glass obstacles up to 1800mm without or with straight or sloping overhang
10. Intelligent user guidance

Upscale corporate lobbies,
High rise building entrances
Luxury apartment complexes
Commercial office buildings
Government agencies


 Housing Material  1.5mm~2.0mm #304 stainless sheet
 Dimension  1400 x 160 x 980mm
 Power Supply  AC220V / AC110V, 50/ 60 Hz
 Channel Width  600~900mm
 Drive Motor DC 24V brushless motor or servo motor
 Pass Speed 35 ~45 persons per minute
 Input Interface  Dry contact signal or +12V level signal or DC12V pulse signal
 Rotating Direction  Bi-directional
 Communication interface  RS485
 Gate open when power failure  Yes
 Open Time  0.2 second
 Life Cycle  5 million times
 Working Temperature  -30°C~+70°C
 Working Environments  Indoor, outdoor (with shelter)


High speed gate turnstile JDSG-21 design

Speed Gate Turnstile JDSG-21 - Access Control Turnstile Speed Gates Suppliers in China

High speed gate turnstile access control system diagram

Turnstile security system drawing
