Current Location: Home > Products> Flap Barrier Turnstile JDYZ-27
Flap Barrier Turnstile JDYZ-27 Flap Barrier Turnstile JDYZ-27 Flap Barrier Turnstile JDYZ-27 Flap Barrier Turnstile JDYZ-27

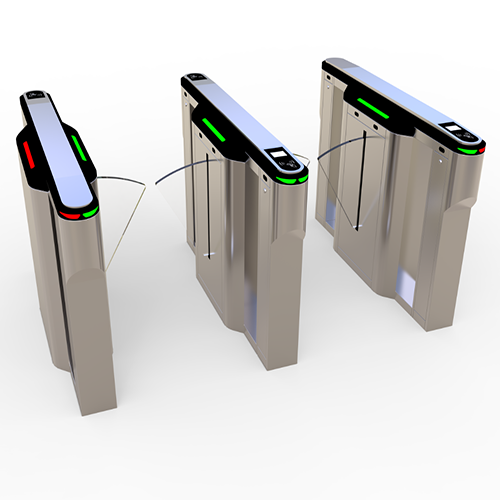

Product Name:Flap Barrier Turnstile JDYZ-27

  • Product Details:

    Flap barrier turnstile JDYZ-27 is designed with modern and stylish look, meeting the latest architectural trends, widely used for corporate lobbies, office buildings, data centers, government facilities, stadiums. Supplied with quick throughput, optical flap turnstile JDYZ-27 is also suited some applications with high traffic flows such as subways and public transportation terminals. Finally, optical flap turnstile gate JDYZ-27 supports bi-directional access and simplified integrate any type of access control system with dry contact output. Any illegal intrusion, tailgating attempts and entries In the reverse direction will trigger sound alarm.

  • E-mail:

Stylish flap gate turnstile, access control flap turnstile,  flap gate optical turnstile seamlessly blends into idoor environments

1. Single directional or bi-directional access available
2. Ensure only one person enters for each authorized credential by tailgate detection
3. Wide integration of all types of identification systems.
4. High detection accuracy effectively prevents clipping and collision
5. Stable and efficient operation with lower noise
6. Create a seamless and nice entrance system to blend into most indoor environments
7. Provides flexibility and allows lanes to be handicap accessible.
8. Any illegal intrusion and reverse intrusion will trigger a sound alarm
9. Forcibly enter or tailgating attempts will be prompted by audible & visible alerts
10. High performance and robustness

Corporate lobbies
Office buildings
Data centers
Government facilities


 Housing Material  1.5mm~2.0mm #304 stainless sheet
 Dimension  1400 x 300 x 980mm
 Power Supply  AC220V / AC110V, 50/ 60 Hz
 Channel Width  550mm
 Drive Motor  DC 24V brush motor
 Pass Speed  35~40 persons per minute
 Input signal optional  Dry contact signal or +12V level signal or DC12V pulse signal
 Rotating Direction  Bi-directional
 Communication interface  RS485
 Arm drop when power failure  Yes
 Open Time  0.2 second
 Life Cycle  3 million times
 Working Temperature  -30°C~+70°C
 Working Environments  Indoor, outdoor (with shelter)


Automatic flap gate turnstile JDYZ-27 design

flap barrier manufacturers, flap barrier system, flap barrier gate, turnstile flap barrier, automatic flap gate turnstile

Flap barrier system diagram

Flap barrier access control system diagram
