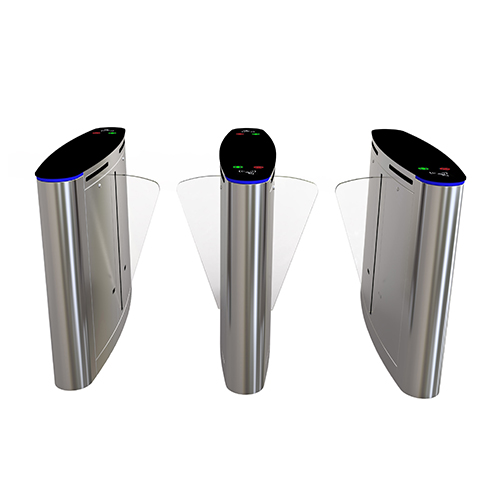

Product Name:Flap Gate Optical Turnstile JDYZ-23

  • Product Details:

    Flap gate optical turnstile JDYZ-23 is an effective pedestrian access control solution for the applications requiring ultra high speed access and medium levels of security, coming with infrared sensors to detect the passage and providing single dirtectional or bi-directional access. Optical flap gate turnstile JDYZ-23 is supplied with green and red LED lights to indicate lane directions. Green lights signify that passage from that direction is allowed while red lights signify no passage in that direction. In addition, optical flap turnstile JDYZ-23 operates in a reliable, fast, quite and smooth way with low power consumption.

  • E-mail:

Optical flap turnstile, automatic flap gate turnstile, flap gate optical turnstile allows lanes to be handicap accessible

1. Single directional or bi-directional access available
2. Ensure only one person enters for each authorized credential by tailgate detection
3. Wide integration of all types of identification systems.
4. High detection accuracy effectively prevents clipping and collision
5. Stable and efficient operation with lower noise
6. Create a seamless and nice entrance system to blend into most indoor environments
7. Provides flexibility and allows lanes to be handicap accessible.
8. Any illegal intrusion and reverse intrusion will trigger a sound alarm
9. Forcibly enter or tailgating attempts will be prompted by audible & visible alerts
10. High performance and robustness

Corporate lobbies
Office buildings
Data centers
Government facilities


 Housing Material  1.5mm~2.0mm #304 stainless sheet
 Dimension  1400 x 300 x 980mm
 Power Supply  AC220V / AC110V, 50/ 60 Hz
 Channel Width  550mm
 Drive Motor  DC 24V brush motor
 Pass Speed   35~40 persons per minute
 Input signal optional  Dry contact signal or +12V level signal or DC12V pulse signal
 Rotating Direction  Bi-directional
 Communication interface  RS485
 Arm drop when power failure  Yes
 Open Time  0.2 second
 Life Cycle  3 million times
 Working Temperature  -30°C~+70°C
 Working Environments  Indoor, outdoor (with shelter)

Automatic Flap Barrier System JDYZ-23 - Security Turnstiles Manufacturer China - Jayda Intellitec Comany

Flap barrier access control system diagram

Pedestrian flap barrier system diagram
